25-60+ Miles - Per Charge (estimated)
Three Programable eBike Classes
Max. Speed 28MPH
Removable Battery Up to 60Mile Range
Payload Capacity 350lbs

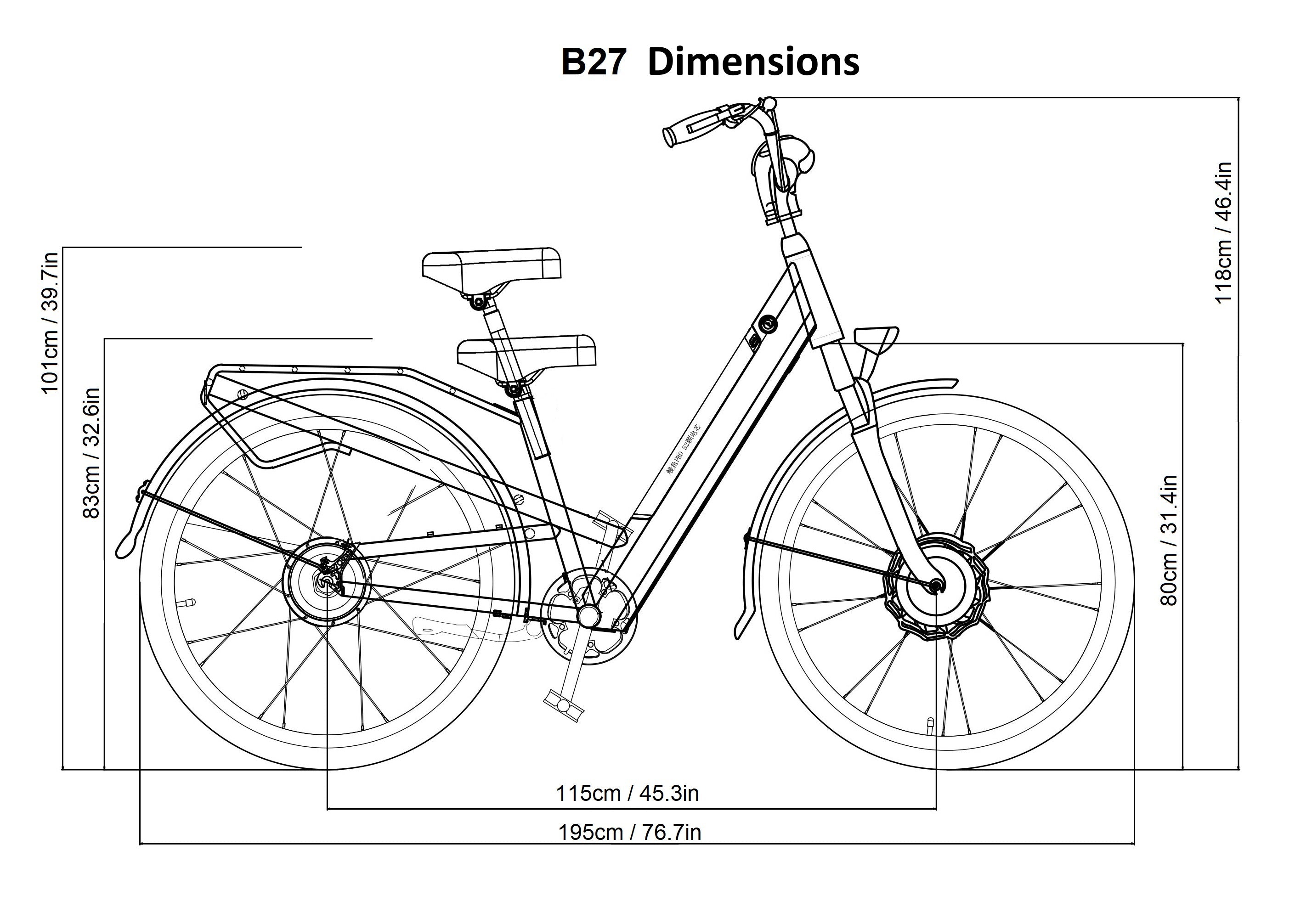

Specification & Geometry
- Description
- SIZE & FIT
- TECHNICAL
- SHIPPING AND RETURNS
- WARRANTY
- FAQ

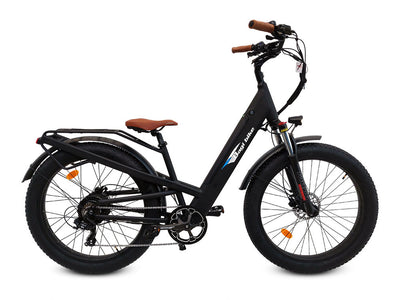

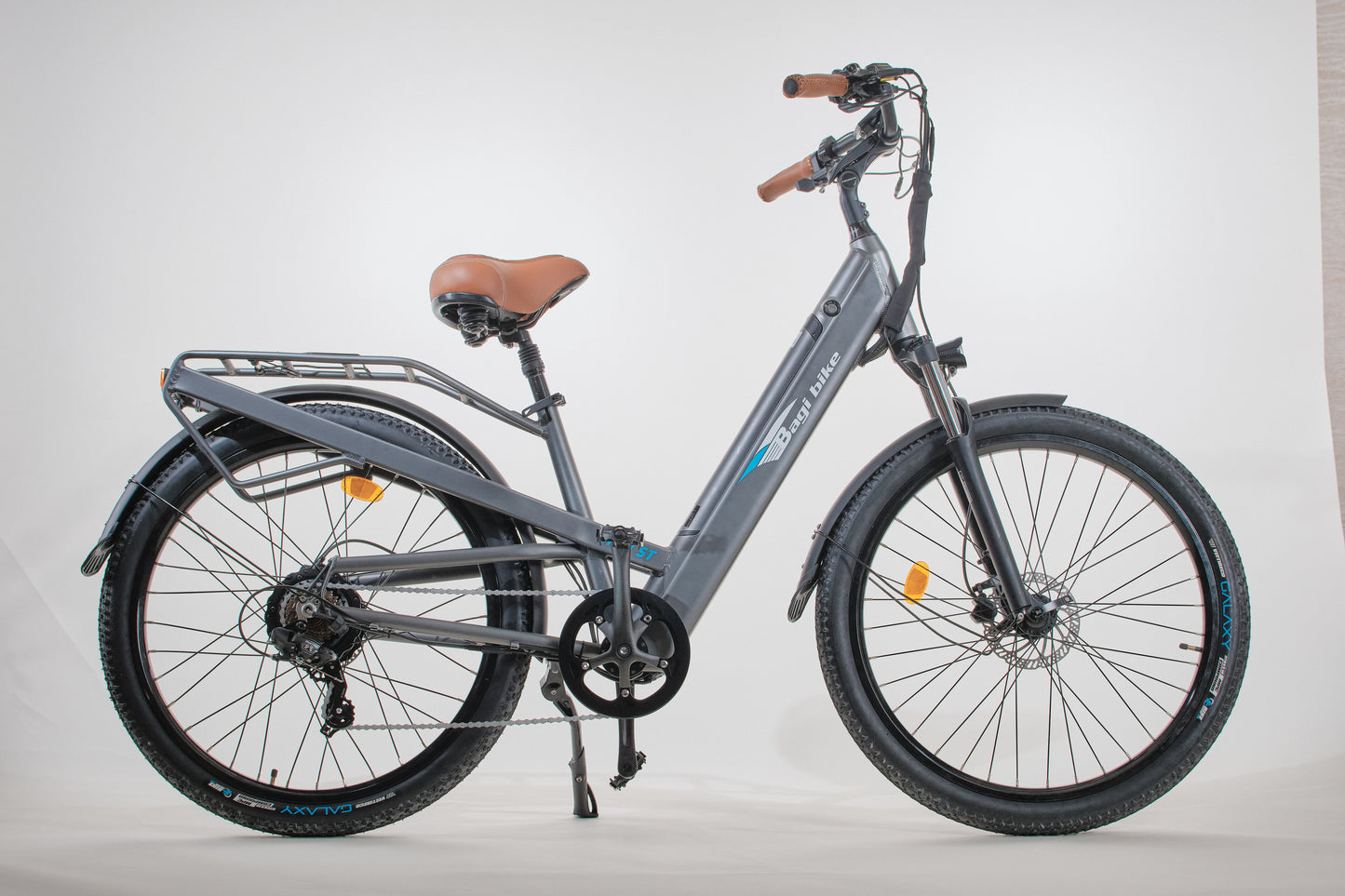

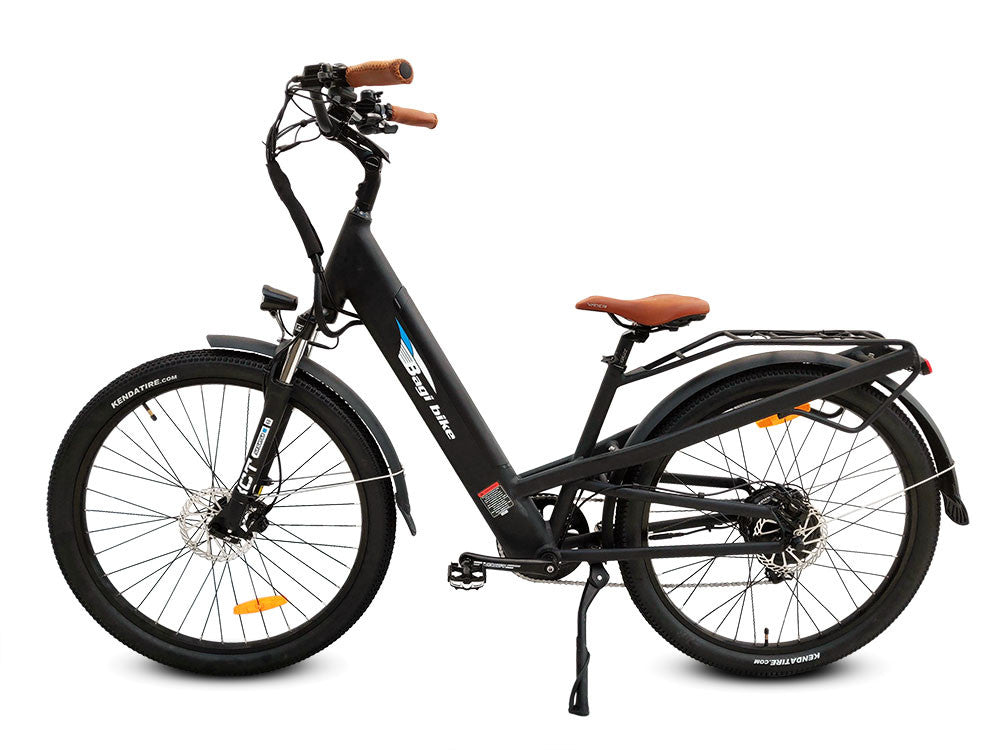

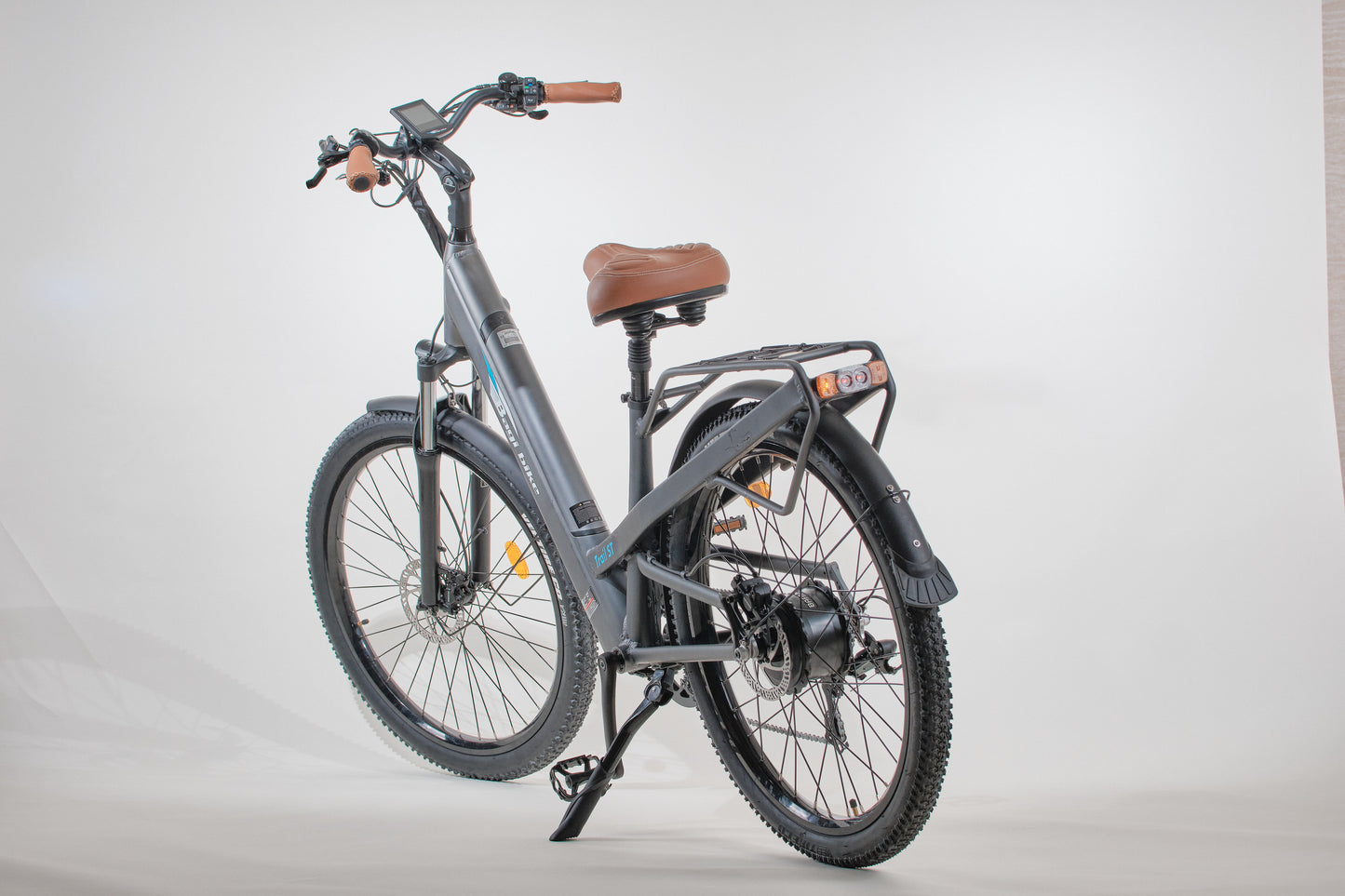

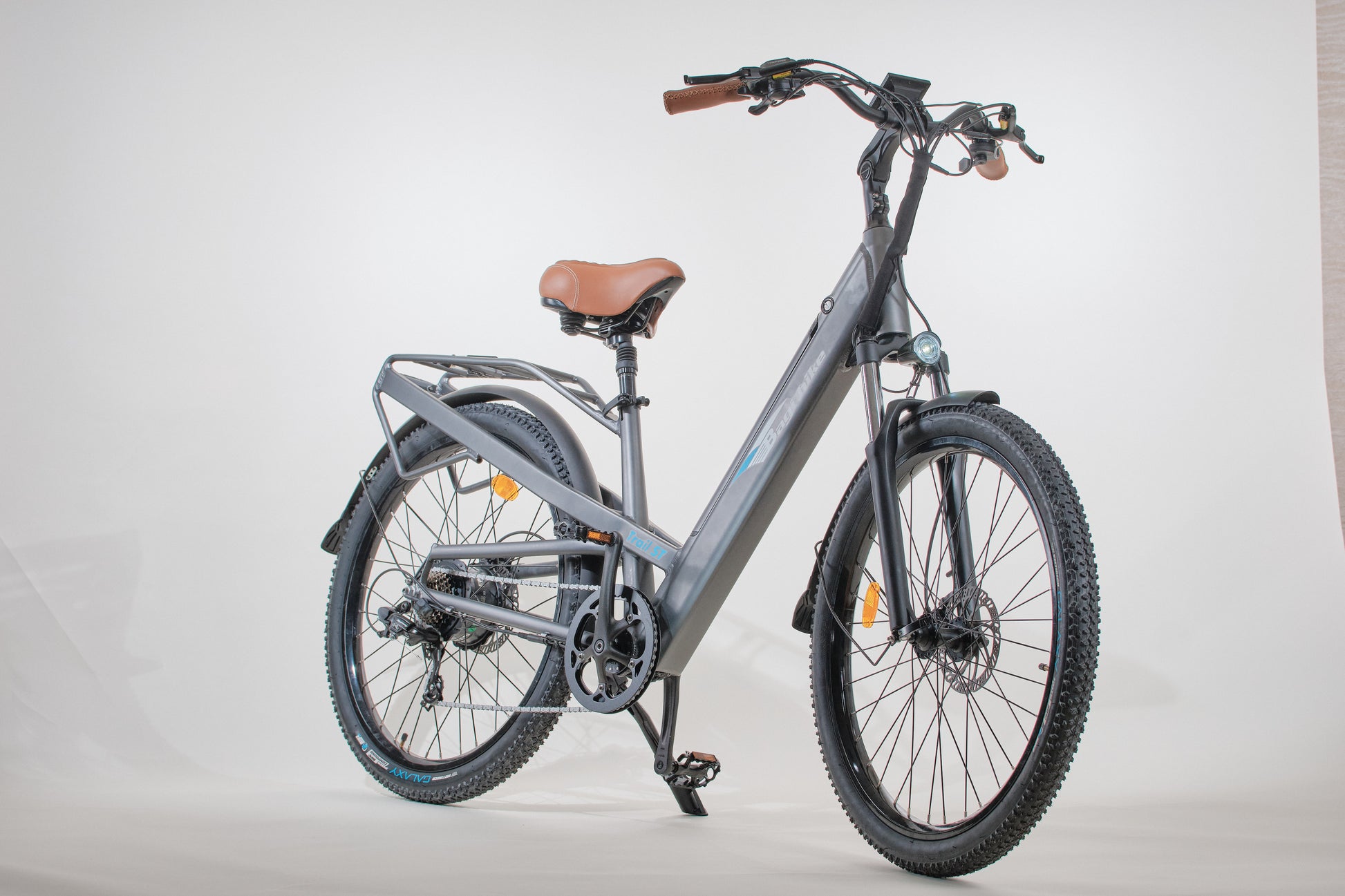

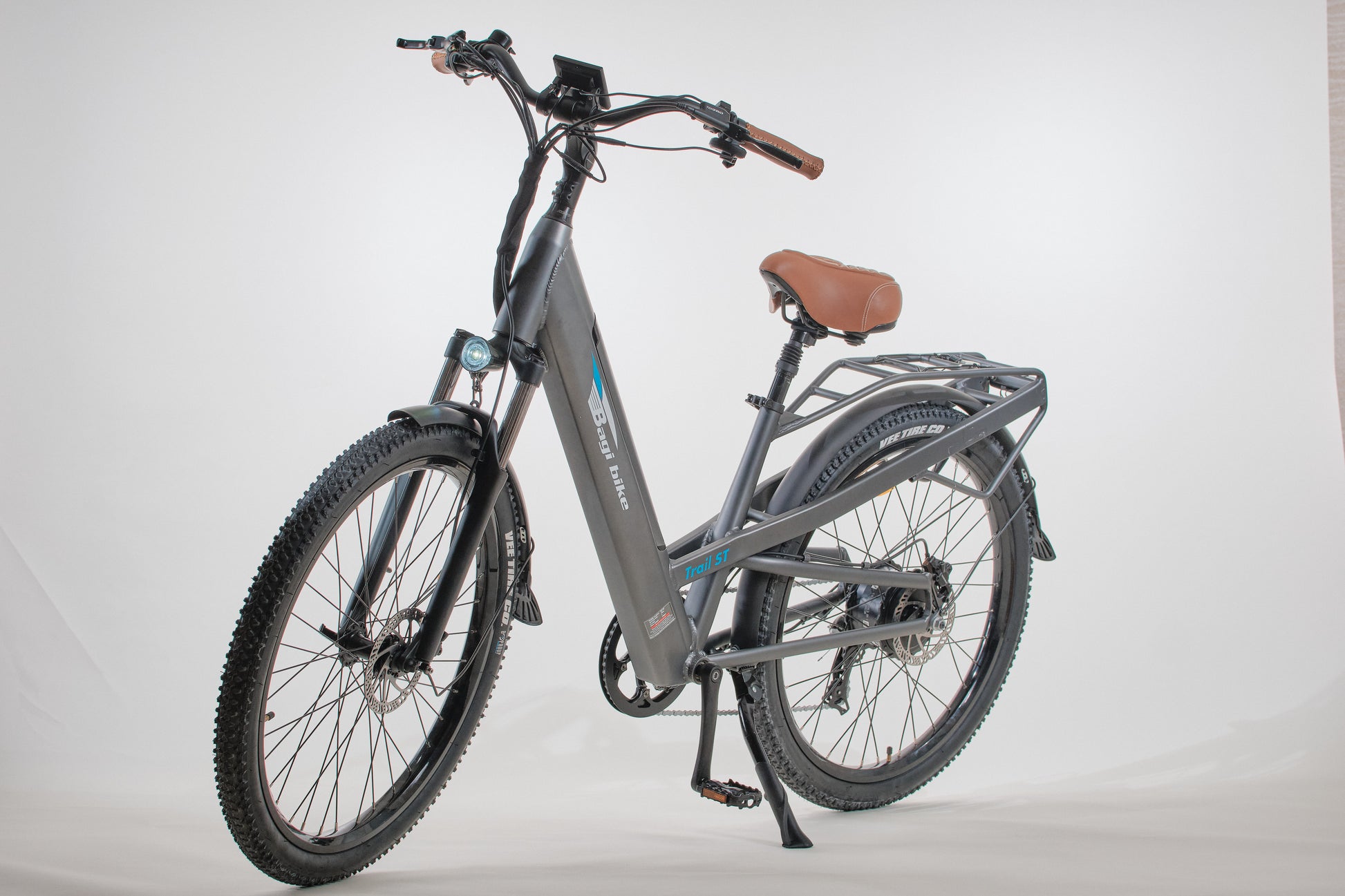

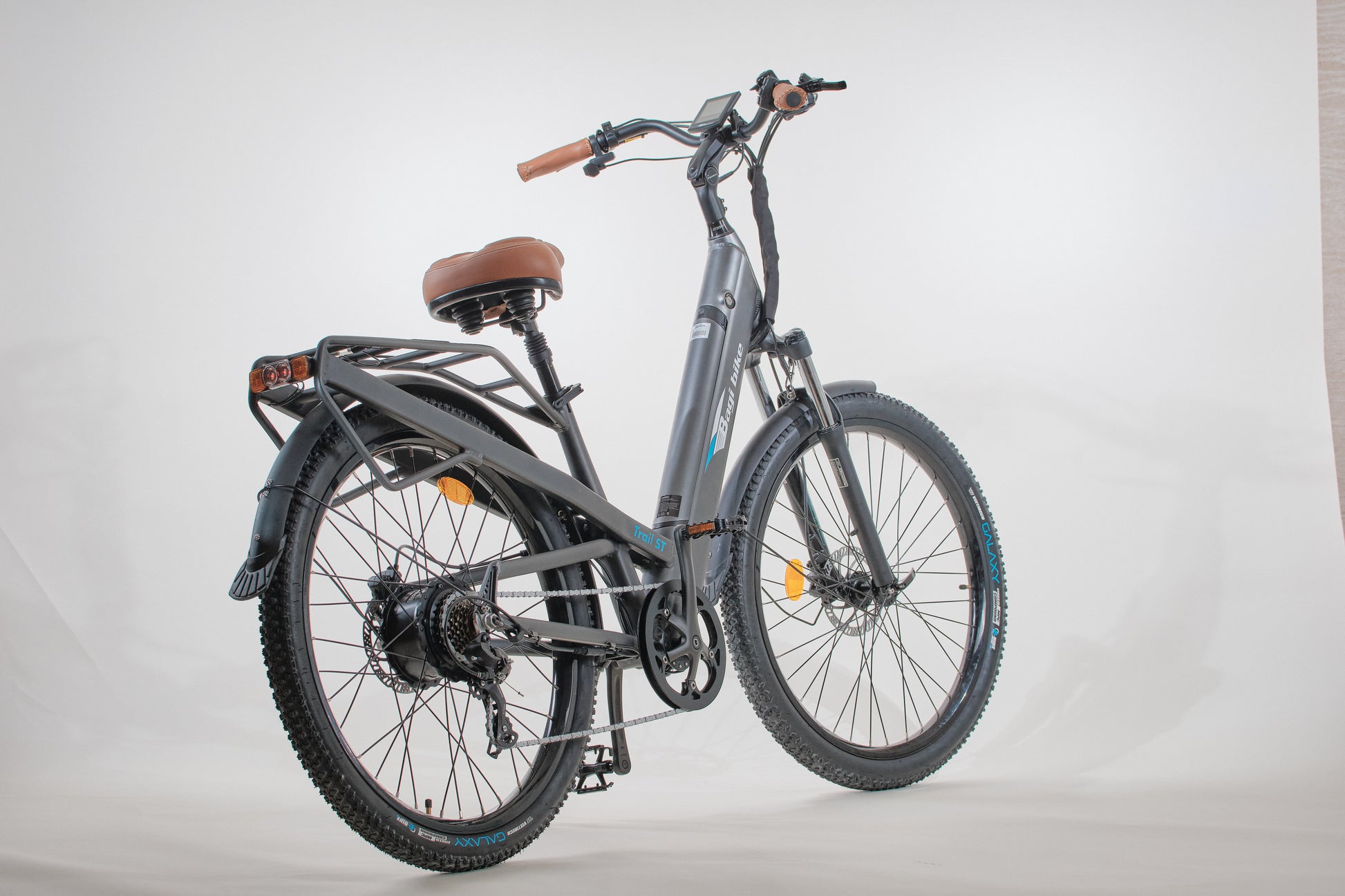

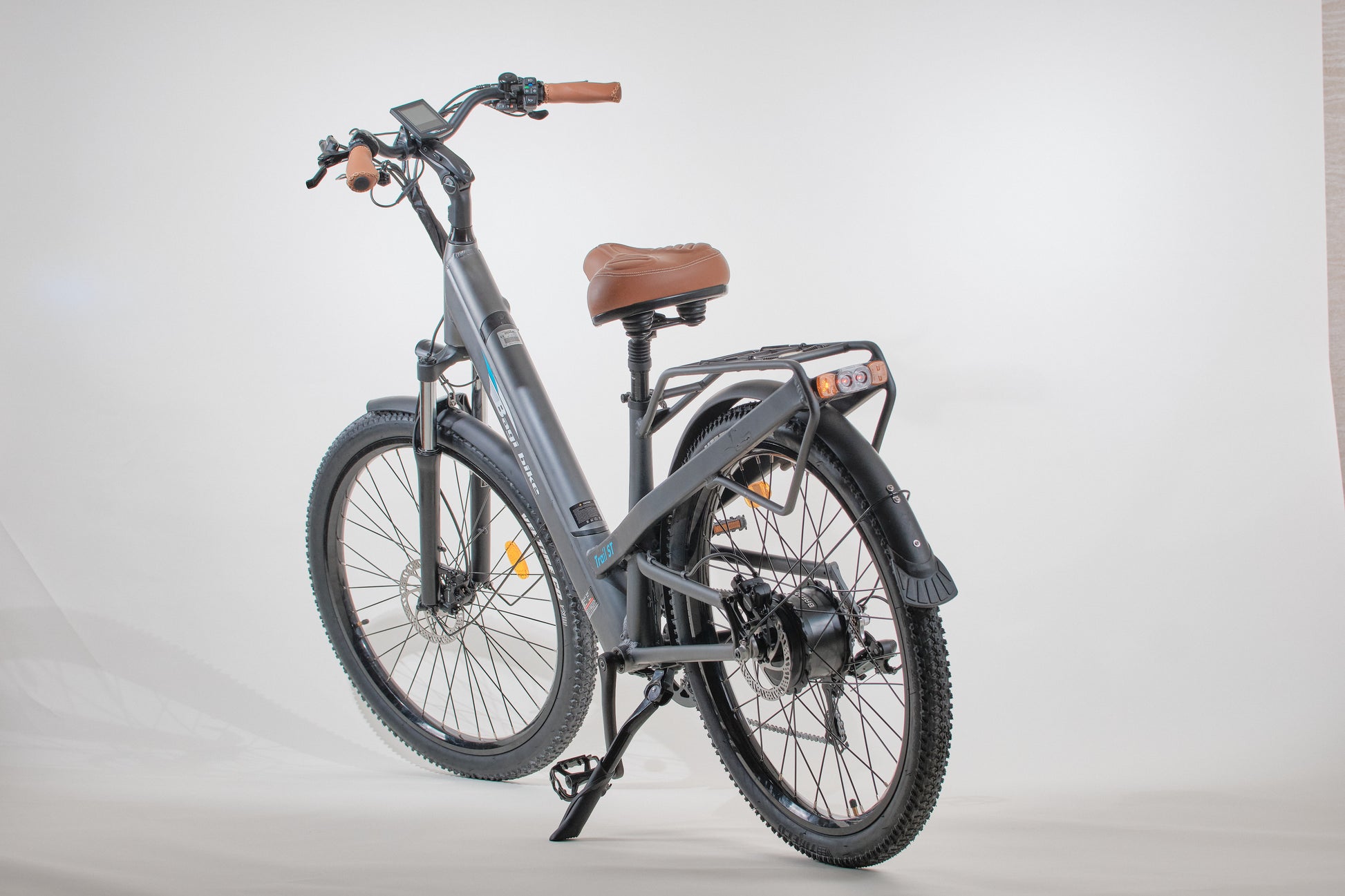

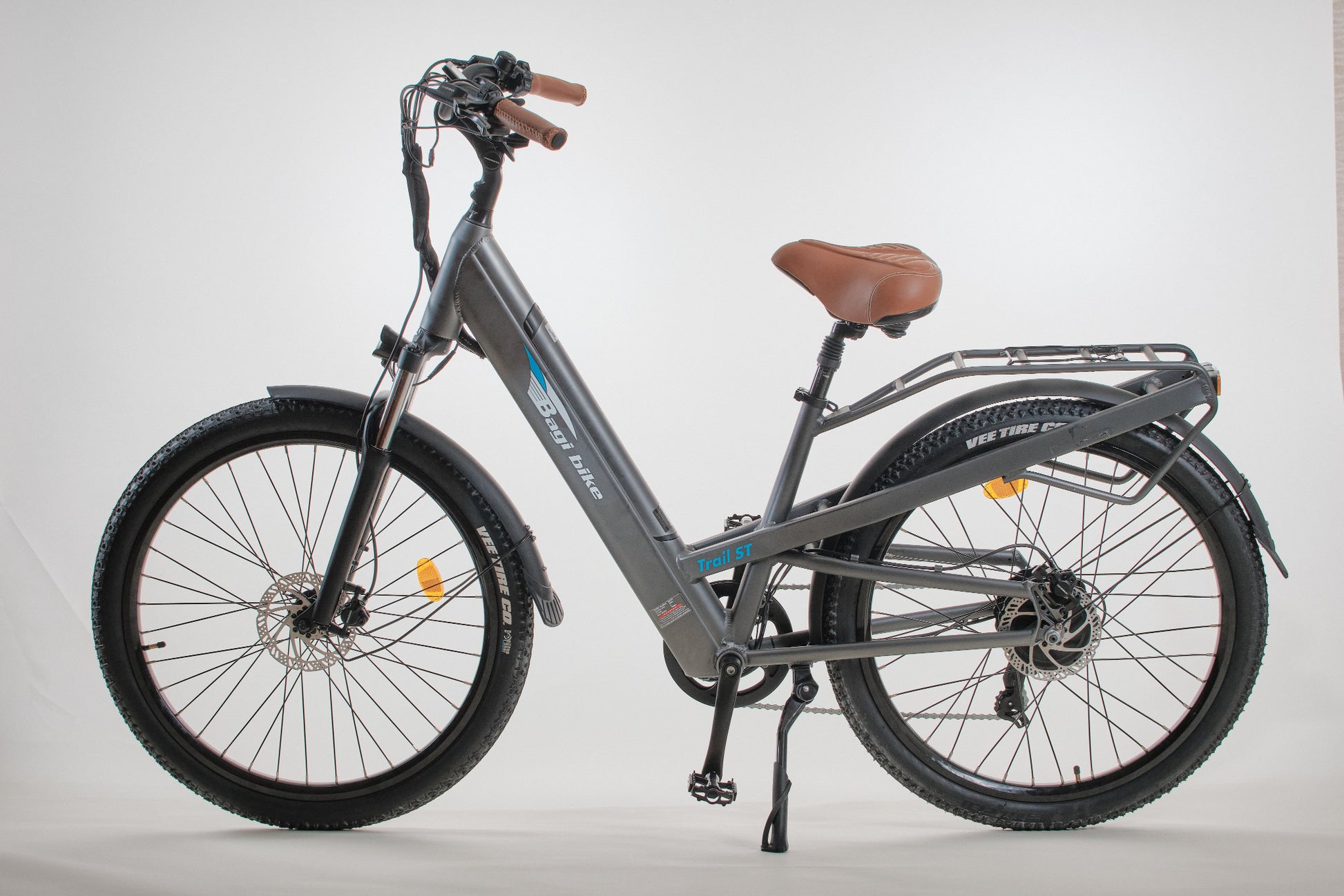

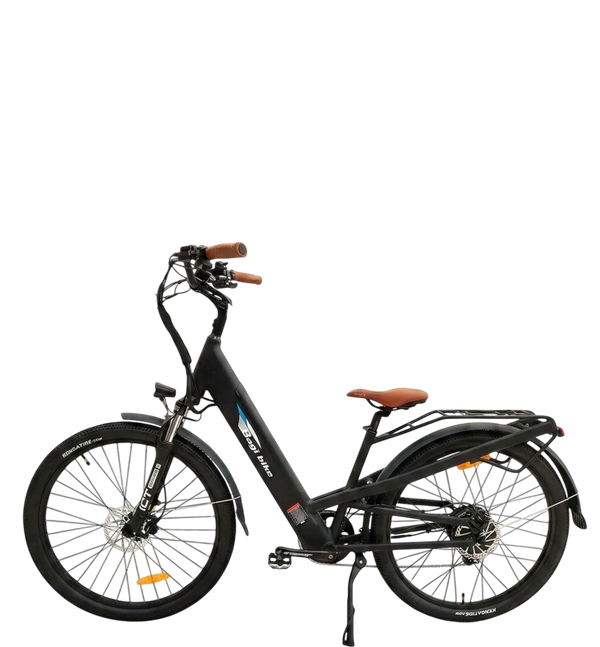

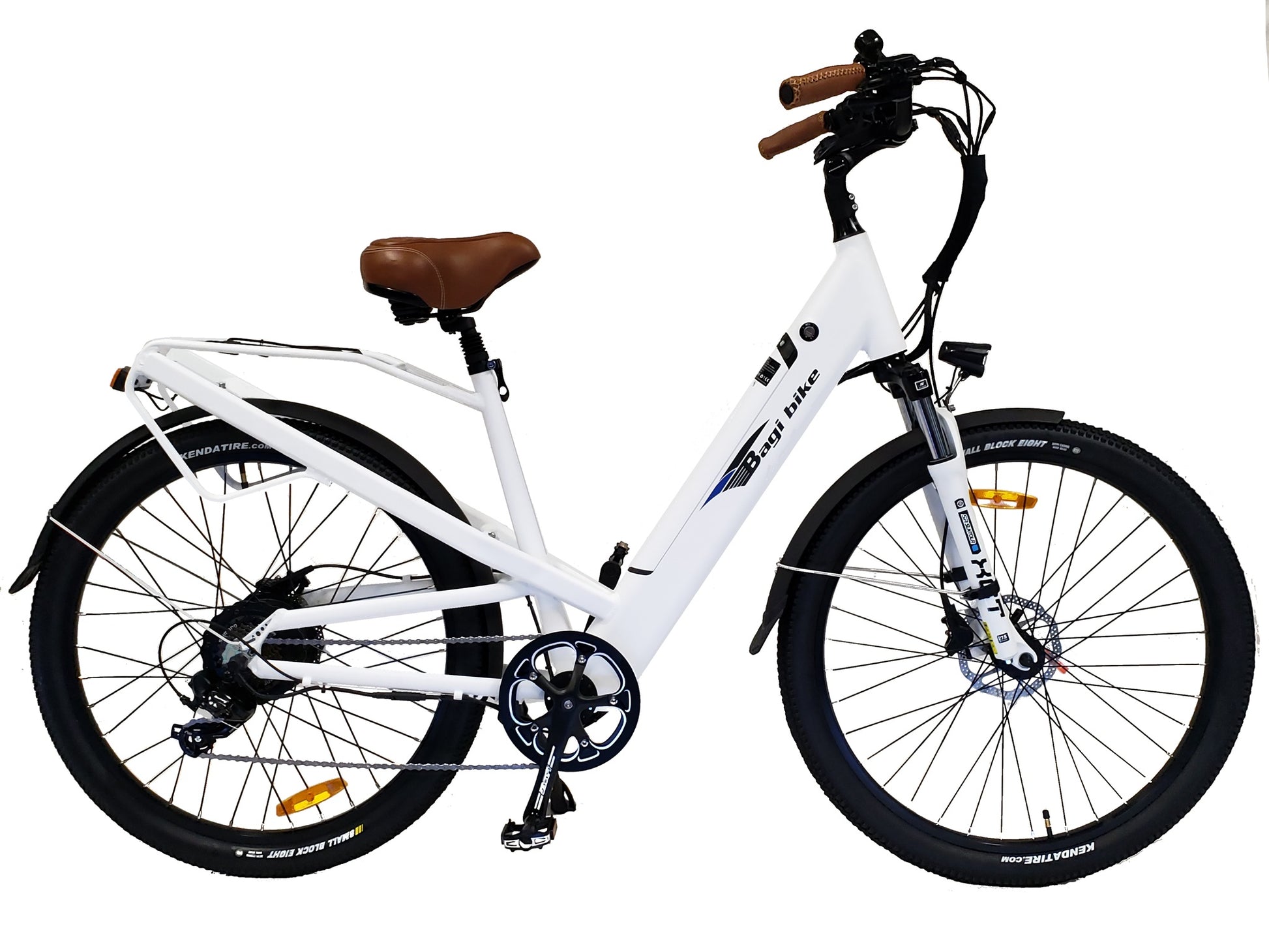

Bagi Bike Trail ST Cruiser Electric Bike
28 MPH -Â Top Speed
500 Watt Bafang -Â Geared Hub Motor
48 volt 15 Ah -Â Lithium-Ion Battery
- ⢠27.5" Tires provide control and performance on city streets.
- ⢠Designed for the needs of daily drivers.
- ⢠Comfortable upright riding position.
- ⢠Pedal forward design & quick adjust handle bars.
| General Information | |
|---|---|
| Model / Type | Bagibike B27 Trail ST Electric Cruiser Bicycle |
| Range | 30â60 Miles with Pedal Assist. 25â35 Miles Per Charge on Throttle. |
| Top Speed | 28 miles per hour (Set class 1, 2 or 3 in LCD settings) |
| Weight | 57 Lbs |
| Total Weight | 300 Lbs |
| Folding | No |
| Box size | 60 x 34 x 12 inches |
| Assembly | Some assembly required. Front wheel, handlebars, and pedals |
| Electric Bike Components | |

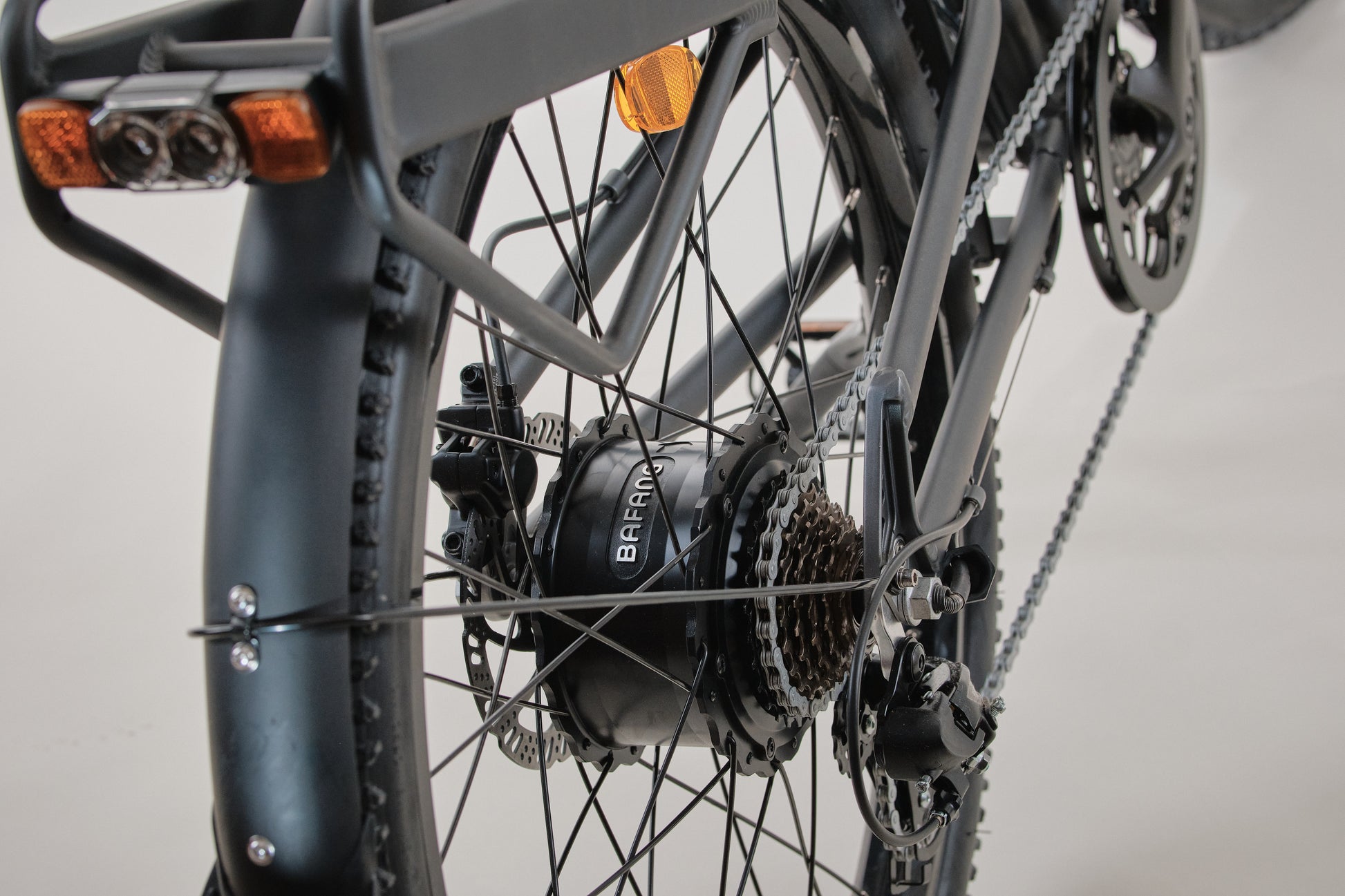

| Motor | Bafang 48v 500-watt Geared Rear Hub, with zero rolling resistance (750 watt peak) |

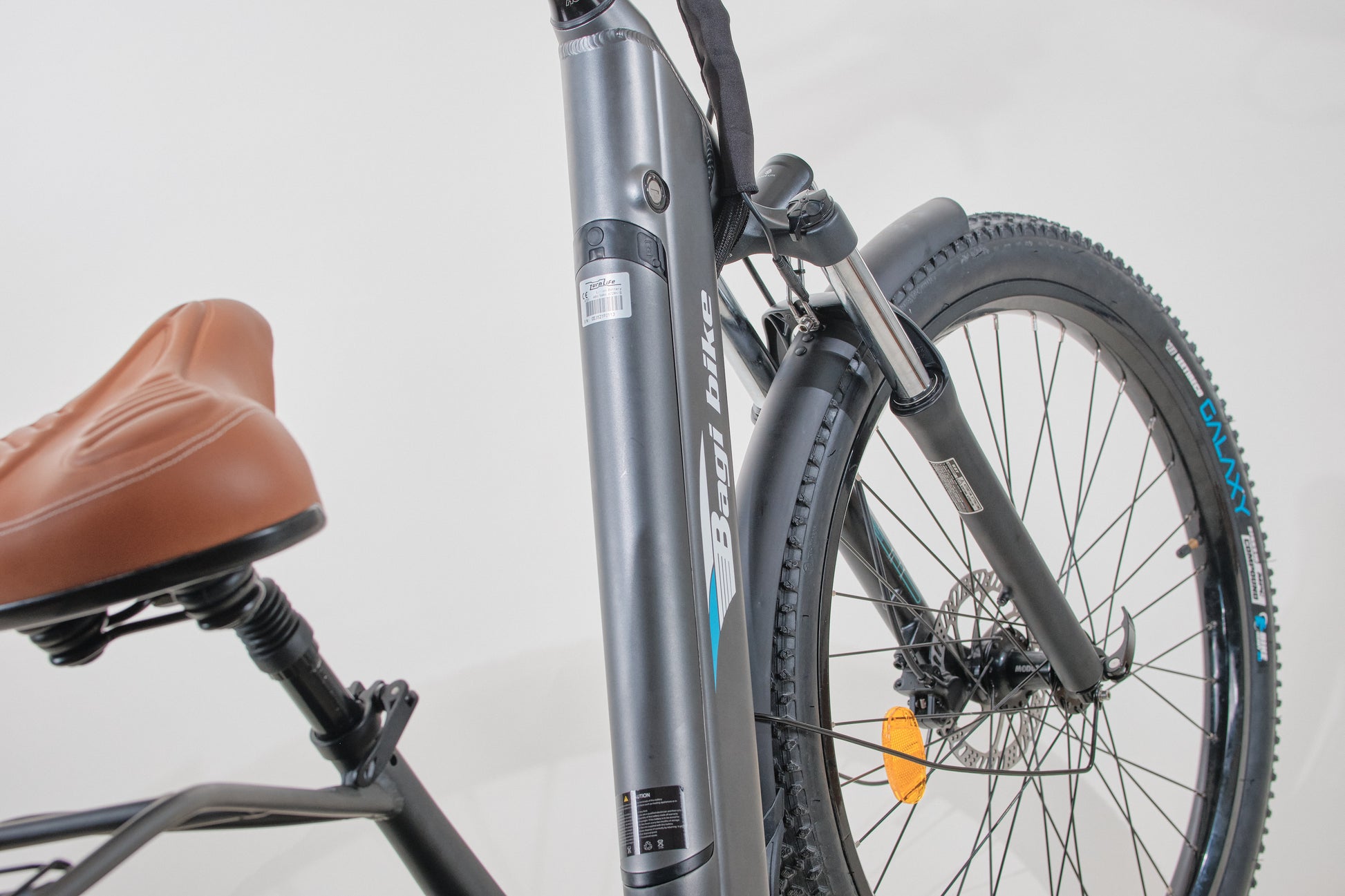

| Battery | Removable Samsung Li-ion Cells 48 volt 15 Amp hour (720 watt hour) |
| Controller | SinWave 48 Volt 22 Amp Sealed Smart Controller |
| Throttle | Thumb Throttle for better safety |
| PAS | Smart pedal assist for 9 power levels |
| Lights | Front Light with horn, brake lights, and turn signals. Powered off the main battery. |
| Charger | Modiary â UL Certified Smart Charger included with auto-off (4â5 Hours) |
| Display Parameters | |

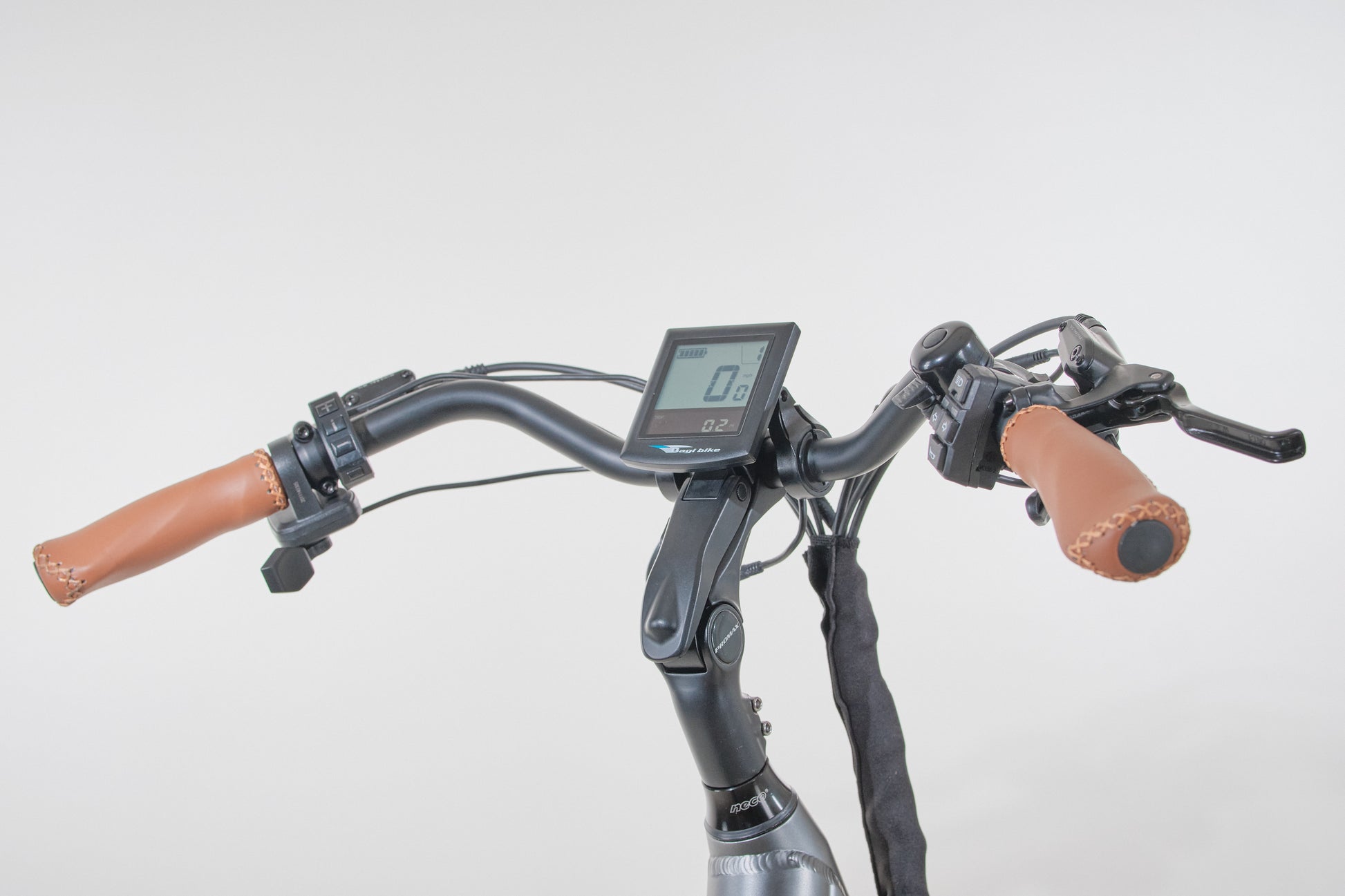

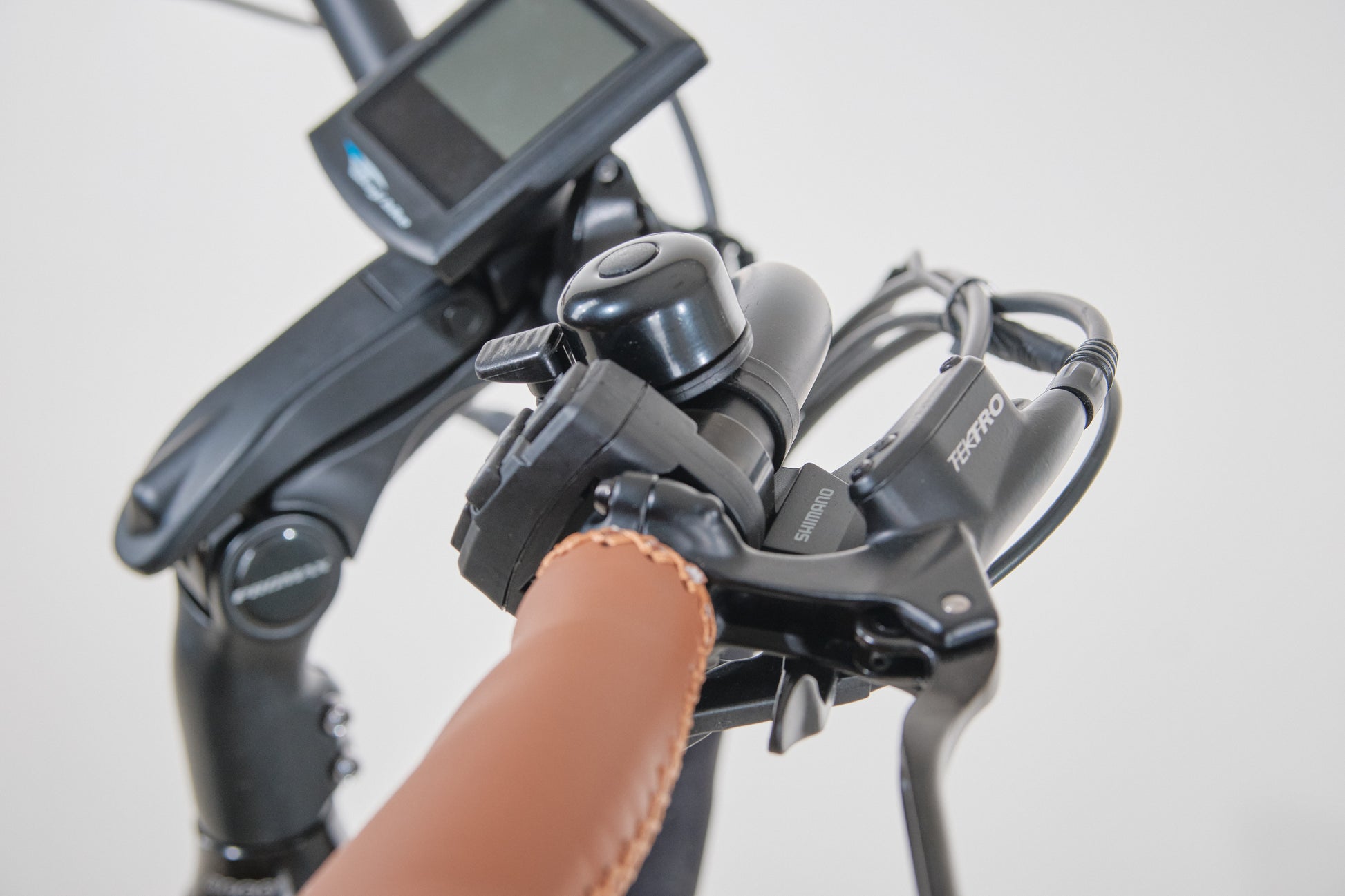

| Model | Bagibike LCD 51c, 3" Large Format |
| PAS Levels | 9 levels Pedal Assist |
| Speedometer | Shows the speed |
| Odometer | Tracks the cumulative travel distance |
| Trip | Tracks the current travel distance |
| Motor watts | Shows motor power at any given time |
| Backlight | YES |
| On Password | YES |
| Class levels | 3 Programmable class levels + extra off-road level |
| Wheels & Tires | |
| Front & Rear | 27.5-inch wheels, double-walled Aluminium rim |
| Tires | 27.5x2.10" Kenda Small Block Eight |
| Mechanical Components | |
| Brakes | Tektro Hydraulic Brake Calipers with 160mm/180mm rotor disc |

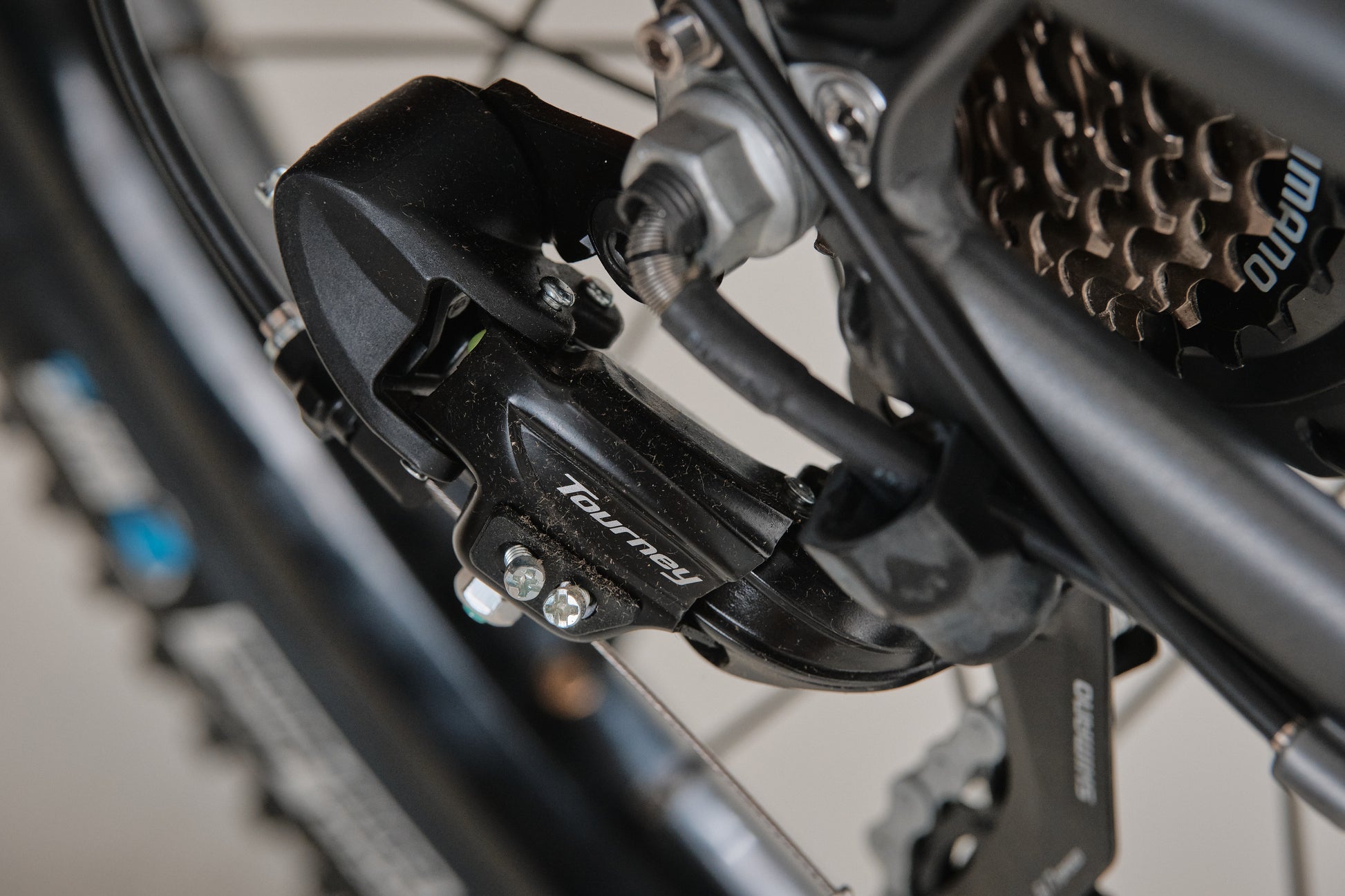

| Gears | 7 Speed Shimano Shifter |

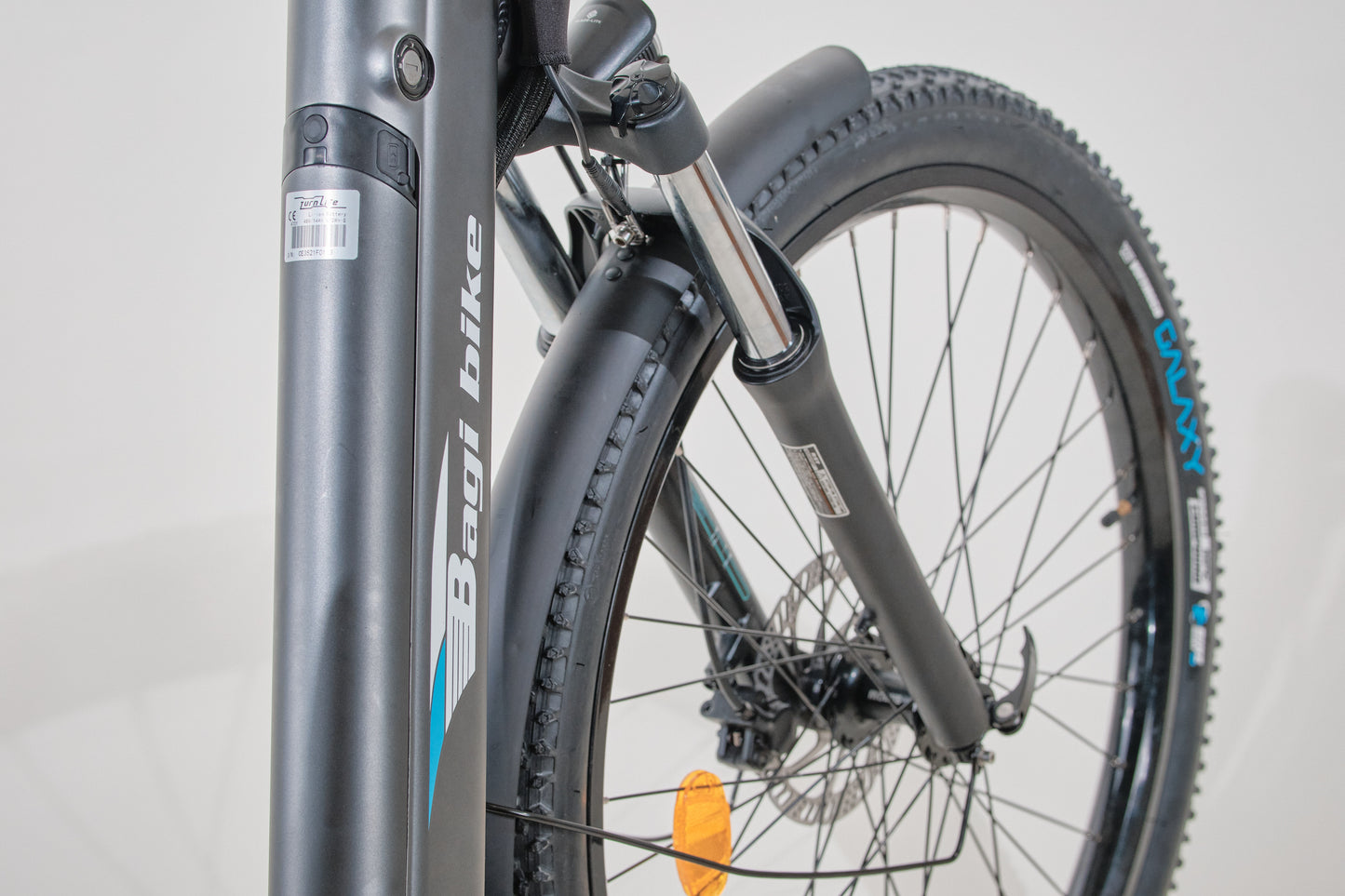

| Fork | Mtb Suspension Front Forks |
| Frame | Aluminum Alloy Step-Through Frame |
| Fenders | Front and Rear fenders included |
| Rake | Integral rake with pannier support |
|
*There may be small differences in parts used depending on the production series. *Speed and range estimates may deviate slightly depending on rider and terrain. |
|
Bikes are shipped fully assembled anywhere in the lower 48 United States for $99. Securely packaged in a large box, just take it out the box, unfold it and you are ready to ride. In stock items ship the next day and arrive within 5-10 days. Click the "Add To Cart" button at the top of the page to place your order.
Guaranteed for 1 year from manufacturer defect. Go to register your warranty here: https://bagibike1.myshopify.com/pages/warranty-registration
